Every day a truck sits in your bay waiting on a repair, it costs the fleet between $448 and $760 in lost revenue. For a shop that services trucks, buses, and fleet vehicles, that math turns your lifting equipment into one of the most important tools you own.
Mobile column lifts handle the heavy-duty work that fixed lifts can’t. They roll into place around the vehicle, lift it evenly, and move from bay to bay as the job changes. Unlike a fixed two-post or four-post lift, nothing stays bolted to the floor.
This guide walks through the best mobile column lifts you can buy right now, breaks down what each one handles best, and shows you how to choose the set that delivers the performance, safety, and speed your shop depends on.
Key takeaways
- Mobile column lifts surround a vehicle with free-standing columns to lift heavy trucks and buses that fixed two- and four-post lifts can’t.
- Match the set size to the vehicle’s axles: A set of 4 covers two-axle trucks, a set of 8 covers four-axle vehicles.
- Verify both the per-column and full-set capacity ratings, and select a lift that provides adequate capacity beyond your typical loads.
- Wireless sets clear the floor of cables, while cabled sets cost less.
- Look for ANSI/ALI ALCTV certification, mechanical safety locks, emergency shut-offs, and power-outage override valves.
Best mobile column lifts: Quick review
We built this list around capacity per column and per set, set configurations, power and communication type, lifting height, and safety certification. Every lift here holds independent certification to the ANSI/ALI standard.
Beyond the numbers, we considered practical factors like setup, operation, and day-to-day usability. The chart below lays the five picks side by side so you can compare them at a glance.
| Lift | Capacity (per column/per set) | Set sizes | Type | Starting price |
| BendPak PCL-18B | 18,000 lbs./up to 144,000 lbs. | 2, 4, 6, 8 | Wireless, ALI certified | $31,495 |
| Mahle CML-7X4 | 14,000 lbs./56,000 lbs. | 4 | Wireless, ALI certified | $52,405 |
| Rotary FlexMax 19 | 18,800 lbs./up to 150,400 lbs. | 2, 4, 6, 8 | Wireless, ALI Gold | $61,298 |
| ARI-Hetra CB Series | 15,000–18,000 lbs./up to 144,000 lbs. | up to 8 | Cable-connected | $27,000 to $120,000+ |
| Challenger CLMM 5K | 5,000 lbs./20,000 lbs. | 4 | Wireless | $9,449.99 |
What are mobile column lifts?
A mobile column lift uses a set of free-standing columns that surround a vehicle and raise it evenly off the ground. Each column rolls into position on its own wheels and engages one wheel, so the set lifts the whole truck at once. Shops buy them in sets (typically two, four, six, or eight columns) and match the set size to the vehicle’s axle count.
People often compare mobile column lifts to two-post lifts and four-post lifts, but those work differently. Both bolt to the floor and stay in one spot, both handle cars and lighter trucks well, and both cap out long before semi-truck weight.
Mobile column lifts, on the other hand, don’t need a permanent install. They roll to the vehicle, store out of the way when a job finishes, and reach capacities fixed lifts can’t touch. The largest sets handle vehicles well over 100,000 lbs.
Who benefits from using mobile column lifts?
Mobile column lifts earn their place in any operation that services large vehicles and needs flexibility about where that work happens. Four types of shops get the most out of them:
- Fleet operators: Every hour of downtime cuts into revenue. A set of column lifts lets a fleet shop service its own vehicles on-site and raise more than one truck at a time when the columns split into smaller groups, which clears the bottleneck of a single fixed bay.
- Municipal service departments: These shops maintain a wide mix of heavy vehicles, like transit buses, garbage trucks, plows, and utility rigs. Column lifts handle that whole range without a dedicated lift for each vehicle type, and they move between buildings or yards as the work calls for it.
- Truck dealerships: Busy service departments see vehicle size change by the hour. Column lifts give the shop the capacity for the heaviest trucks on the lot and the flexibility to reconfigure bay space as the schedule shifts.
- Heavy equipment repair shops: Some vehicles simply won’t fit a fixed lift. Column lifts surround equipment of almost any length or weight, which opens up full undercarriage access for jobs a two-post or four-post lift can’t take on.
Best mobile column lifts
The mobile column lifts below cover the full range of heavy-duty lifting, from medium-duty sets built for cars and light trucks to systems that raise the heaviest commercial vehicles on the road.

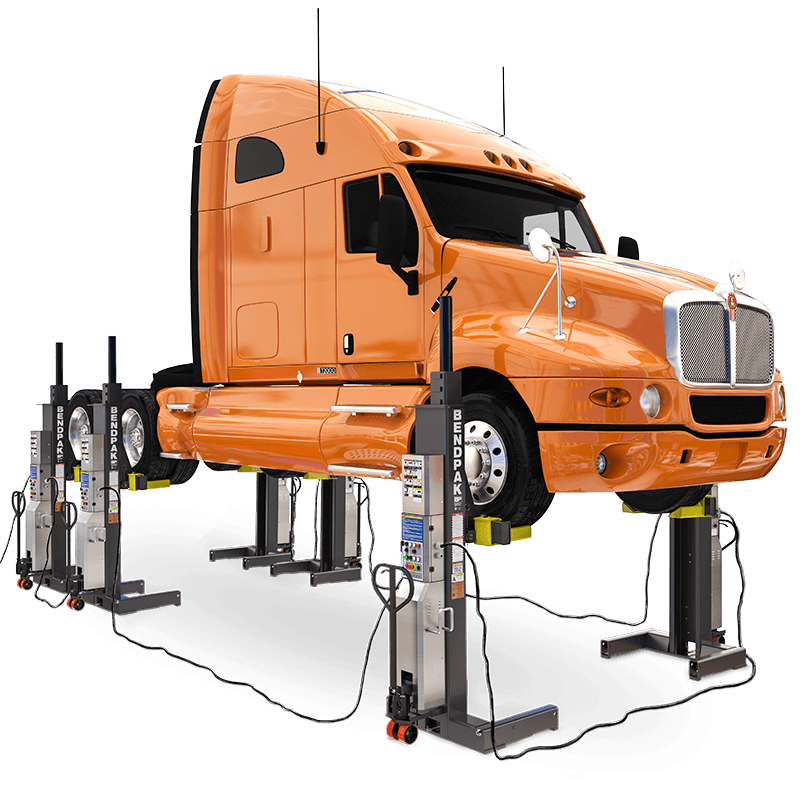

- Bendpak PCL-18B: Best for High-Volume Fleet and Truck Shops
[Logo source: https://www.bendpak.com/media/wysiwyg/BendPak_Logo-Black.jpg
Logo alt text: BendPak logo]
The PCL-18B earns its spot for shops servicing a mixed fleet, where the same crew lifts straight trucks, tractors, and buses without swapping equipment. It runs on an on-demand electric-hydraulic system, so power kicks in only when the columns move. That design gives you long work cycles and no duty-cycle ceiling, even in a bay that never slows down.
One person can reposition a column in seconds with the built-in hydraulic jack and pallet-jack-style steering, no second set of hands needed. Sets come in 2, 4, 6, and 8 columns, so you can match your axle counts exactly and split larger sets to run two trucks at once.
[Product source: https://www.bendpak.com/media/catalog/product/cache/207e23213cf636ccdef205098cf3c8a3/b/e/bendpak-pcl-18b-4-mobile-lift-system-set-of-4-72000-lbs-capacity-5175292-5175296-ali-certified.jpg
Product alt text: BendPak PCL-18B mobile column lift, set of 4]
Specifications:
- Capacity: 18,000 lbs. per column/36,000 to 144,000 lbs. per set
- Set sizes: 2, 4, 6, or 8 columns
- Communication: Wireless
- Power: 208 to 240V, three-phase
- Lifting height: 69″
- Certification: ANSI/ALI ALCTV
Pricing: Starts at $31,495 (set of 2). Financing available from $662/mo.

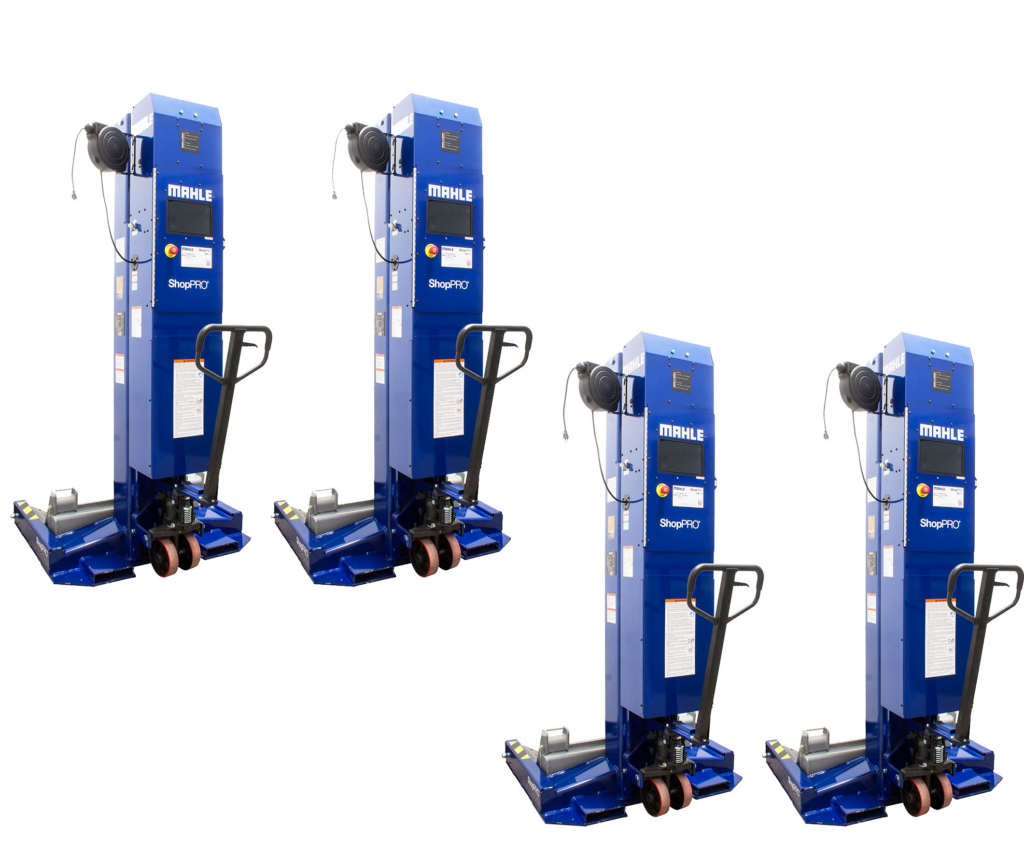

- Mahle CML-7×4: Best for Shops That Want Simple, Guided Operation
[Logo source: https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcQb6NXj-VZKrZXffMT-rI6Hwek-HnDxoe4UEA&s
Logo alt text: Mahle logo]
The CML-7X4 is perfect for busy bus and box-truck shops that run a steady mix of medium and heavy vehicles. Each column runs from a tablet-based touchscreen with on-board manuals and videos, so the controls and the guidance sit in one place at the column.
The self-centering carriage lines the forks up under the tire on its own and adjusts to fit oversized wheels. The wireless design keeps cables off the floor and out from under the vehicle, which gives techs clean access for transmission pulls, clutch jobs, and brake and axle work.
[Product source: https://www.toolpan.com/assets/images/CML-7X4.jpg
Product alt text: Mahle CML-7X4 mobile column lift]
Specifications:
- Capacity: 14,000 lbs. per column/56,000 lbs. per set
- Set size: 4 columns
- Communication: Wireless
- Wheel range: Fits 5″ to 24.5″ wheel diameters
- Lifting height: 69″
- Certification: ALI
Pricing: $52,405 (set of 4). Financing available from $1,101/mo.

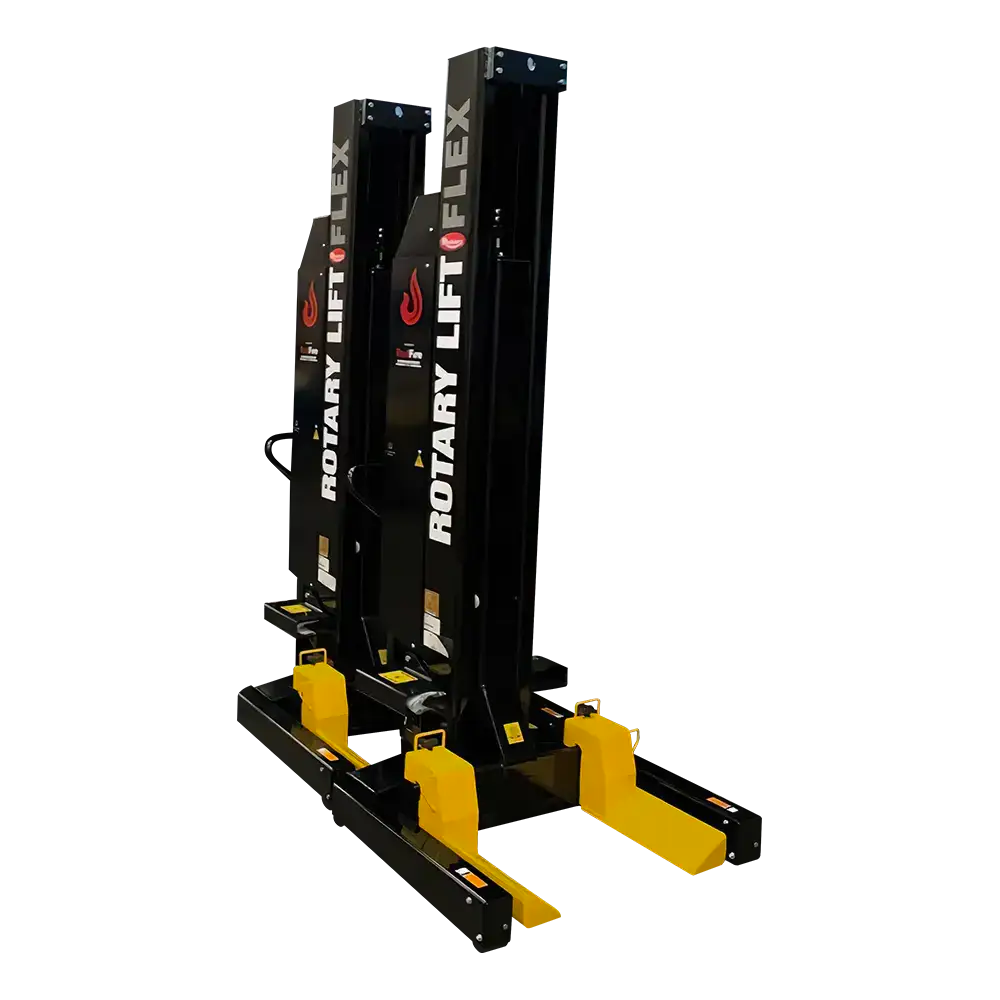

- Rotary FlexMax 19: Best for Heavy-Duty Fleet
[Logo source: https://rotarysolutions.eu/wp-content/uploads/2020/10/cropped-cropped-cropped-cropped-cropped-Rotary-icon-website-2020-10.png
Logo alt text: Rotary logo]
The Rotary FlexMax 19 operates by handheld wireless remote, with each column controllable on its own for positioning around a vehicle. Digital gauges on the columns display lifting height and vehicle weight during operation. The columns move on spring-loaded steering with rubber-coated wheels and relocate between sites by forklift pocket. Rotary’s LockLight system indicates the mechanical lock status, and the lift holds ALI Gold certification.
[Product source: https://cdn.shopify.com/s/files/1/0981/9342/files/rotary-19k-flex-max-wireless-remote-control-mobile-column-lift-system-set-of-4-mchm19-598.webp
Product alt text: Rotary FlexMax 19 wireless mobile column lift, set of 4]
Specifications:
- Capacity: 18,800 lbs. per column/37,600 to 150,400 lbs. per set
- Set sizes: 2, 4, 6, or 8 columns
- Communication: Wireless
- Lifting height: 69″
- Speed of rise: 78 seconds
- Wheel range: Fits 9″ to 24″ rims
- Certification: ALI Gold
Pricing: $61,298 (set of 4)

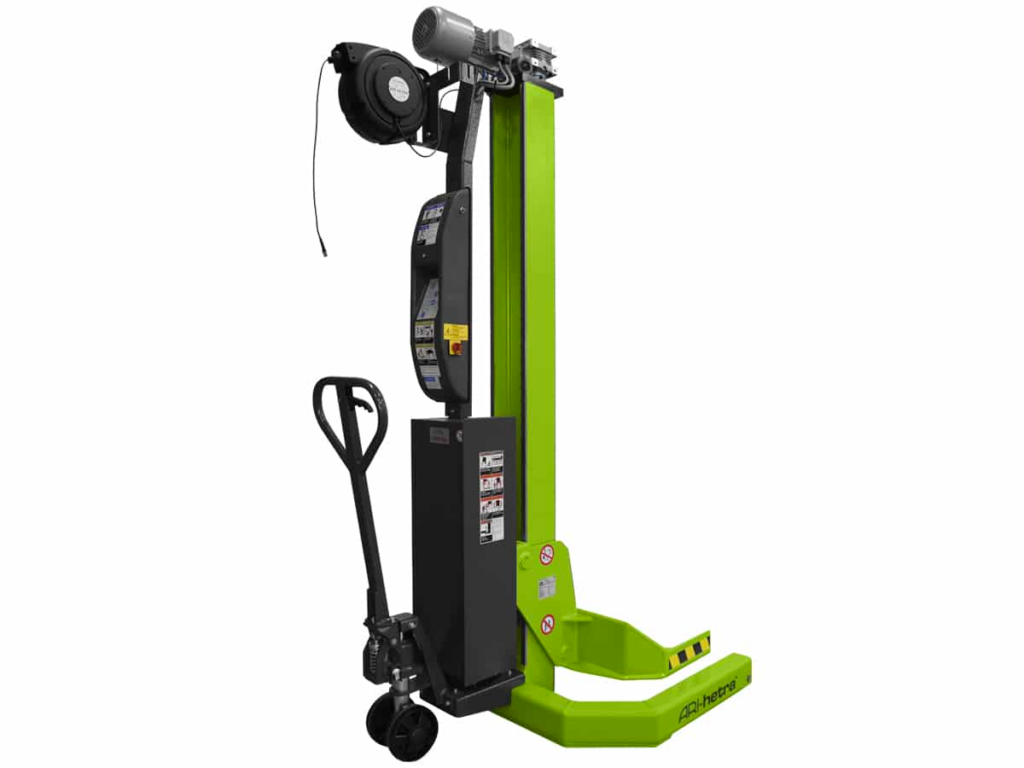

- ARI-Hetra Cable Battery-Powered Mobile Column Lift: Best for Cable-Connected, Battery-Powered Operation
[Logo source: https://www.ari-hetra.com/wp-content/uploads/2019/05/ARI-HETRA-Logo-Transparent.png
Logo alt text: ARI-Hetra logo]
The ARI-Hetra CB Series runs on rechargeable batteries rather than a fixed power supply, with each column powered by its own 48V DC battery pack and charged from a standard 110V outlet. The columns link by quick-connect cable, and a cleat system routes those cables up off the floor. Operators move the columns on self-contained wheels with a hydraulic jack and steering assembly. Built-in overload protection shuts the system down when a load exceeds rated capacity, and each column carries an emergency stop button.
[Product source: https://www.ari-hetra.com/wp-content/uploads/2020/03/Cable-Battery-Lifts-CB-9_12_Website.jpg
Product alt text: ARI-Hetra CB Series cable battery-powered mobile column lift]
Specifications:
- Capacity: 15,000 to 18,000 lbs. per column, depending on model
- Set sizes: Configurable up to 8 columns (up to 144,000 lbs.)
- Communication: Cable-connected
- Power: 48V DC battery (four 12V batteries per column), 110V charging
- Charging: 8-hour cycle
- Motor: 2 HP per column
Pricing: $27,000 to $120,000+
- Challenger 5K Medium-Duty Mobile Column Lift: Best for Medium-Duty and EV Service
[Logo source: https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcSz0Ef2xqKkzmEmJqbo9FvfqM2Uk-903IULcQ&s
Logo alt text: Challenger logo]
The Challenger 5K Medium-Duty Mobile Column Lift Series is a medium-duty mobile column lift for passenger cars, light trucks, and lighter commercial vehicles. It runs on rechargeable batteries charged from a 110V outlet and needs no air supply, and any column in the set can operate the others. The columns move on tow handles and spring-loaded wheels, and the wireless connection keeps cables off the floor. Its full under-vehicle clearance also suits electric vehicle work, including dropping and installing battery packs.
[Product source: https://cdn11.bigcommerce.com/s-kcixt8ktr4/images/stencil/1000×1000/products/41865/40924/CLMM-5000-2__47363.1759550115.jpg?c=1
Product alt text: Challenger CLMM 5K medium-duty mobile column lift]
Specifications:
- Capacity: 5,000 lbs. per column/20,000 lbs. per set
- Set size: 4 columns
- Communication: Wireless
- Power: Rechargeable battery, 110V charging
- Wheel range: Fits 6″ to 22″ wheel diameters
Pricing: $9,449.99
How to choose the best mobile column lifts for your work
The right set of column lifts comes down to matching the equipment to the vehicles you service and the way your shop runs. Consider the following factors.
Wireless vs cabled mobile column lifts
Cabled column lifts connect to each other with control cables, while wireless sets communicate with no cables running across the floor. Wireless systems clear the work area completely, which removes a trip hazard and lets technicians and vehicles move freely around the lift. Decide based on how much open floor space your shop needs and whether you want cables out of the picture entirely.
Weight capacity
Capacity works on two numbers: the rating per column and the combined rating of the full set. Match the per-column number to the heaviest single axle you service, and match the combined number to the heaviest complete vehicle. Then, look for headroom above that, so the lift never works at its limit. Pay attention to per-column capacity especially, since a higher per-column rating means fewer columns can handle the same vehicle.
Portability and storage
A column lift only saves you time if a single technician can move it without a fight. Look for a built-in hydraulic jack and pallet-jack-style steering that raise and roll each column in seconds, plus wheels that travel over dirt and debris without snagging. Check the column’s footprint and weight too, since a compact, lower-profile column tucks out of the way fast when the job ends and the bay needs to clear.

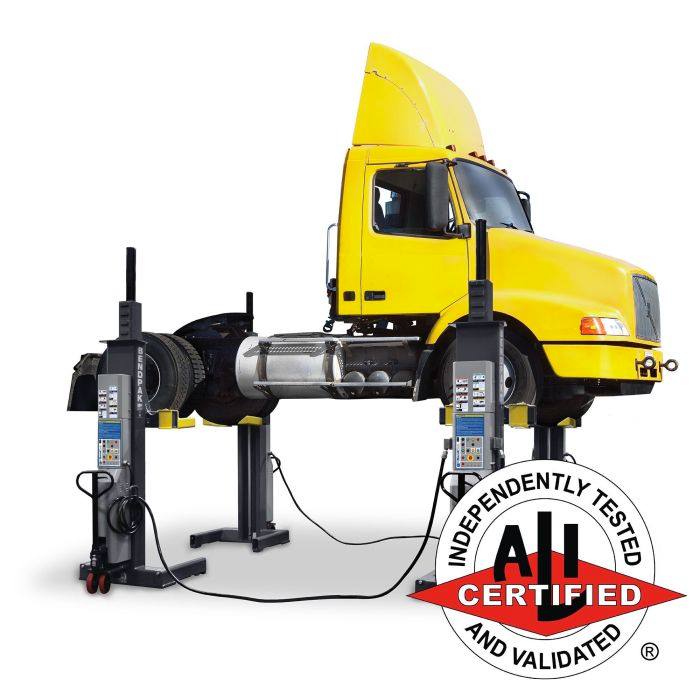

Safety features and certifications
Look for lifts tested to the ANSI/ALI ALCTV standard, the independent benchmark that confirms a lift performs as rated. From there, check for mechanical safety locks that hold the load at any height, emergency shut-offs on every column, and override valves that lower the vehicle safely during a power outage. These features decide whether the lift protects your team on its worst day, not just its best one.
Choose the best mobile column lifts for your shop
The right mobile column lift comes down to how heavy the vehicles you service run, how many axles they ride on, and how much you want cables out of your way. Once you have those answers, the set size and capacity you need fall into place, and the list above gives you certified options at every level.
Wrenchers backs every order with free shipping, a price-match guarantee, and 0% financing. Our product specialists can walk you through capacity, power requirements, and set configuration before you commit. The same team helps with installation and service after the lift arrives. With capacity, configuration, and support covered, you’re ready to make an informed decision.
